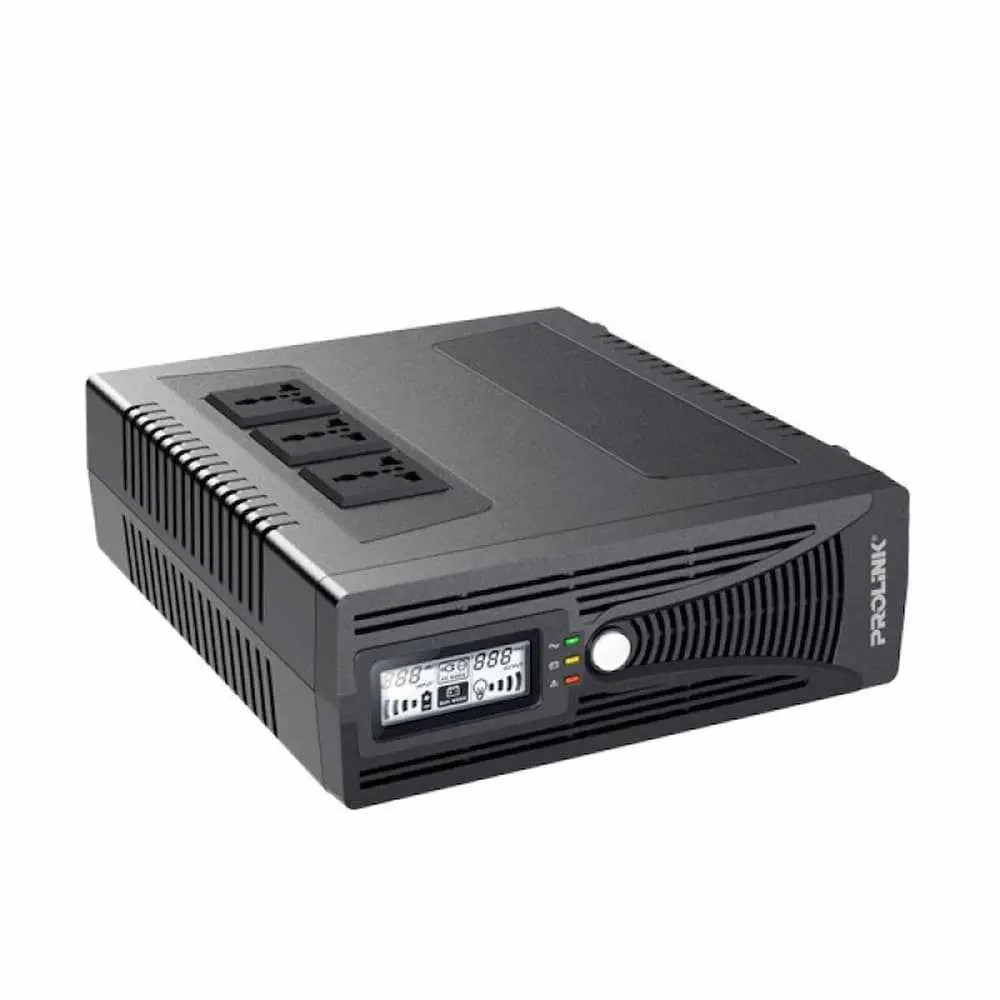

PROLINK Inverter 2400va W/lcd and Scc Pwm30a | IPS2400
PROLINK Inverter 2400va W/lcd and Scc Pwm30a | IPS2400 Specifications : Capacity 2400VA Dimension (mm) 293 x 231.5 x 82.5 (D x W x H) Weight (kg) 2.55 INPUT Nominal Voltage 220/ 230/ 240…
$223.72
WhatsApp us
Shopping from Lebanon?
Current online price and availability are shown on this page. Cash on delivery is available where offered at checkout, and delivery options are shown before you place the order.
Need help choosing? Contact Khalife Computers.
PROLINK Inverter 2400va W/lcd and Scc Pwm30a | IPS2400
Specifications :
| Capacity | 2400VA |
| Dimension (mm) | 293 x 231.5 x 82.5 (D x W x H) |
| Weight (kg) | 2.55 |
INPUT
| Nominal Voltage | 220/ 230/ 240 VAC |
| Voltage Range | 170-280 VAC (For Personal Computers)90-280 VAC (For Home Appliances) |
| Frequency Range | 50/60 Hz (Auto Sensing) |
OUTPUT
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 10% |
| Transfer Time | 10 ms (Typical) 20 ms (max) |
| Waveform (Batt. Mode) | Simulated |
| Peak Efficiency | >95% |
BATTERY & PROTECTION
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27.4 VDC ± 0.5 VDC |
| Overcharge Protection | 30 VDC |
| Maximum Charge Current | 10A or 20A (Selectable) |
| Full Protection | Overload and short circuit protection |
INDICATORS & ALARM
| LCD Display | Input Voltage, Output Voltage, Load level, Battery level and Fault alarm |
| LED Display | Fault: Red LightingBattery Mode: Yellow Flashing Low Battery: Yellow Flashing Shutdown Mode: Yellow Flashing Charging Mode: Green Flashing Overload: Red Lighting |
| Low Battery | Sounding every 2 seconds |
| Overload | Sounding every 0.5 second |
| Fault | Continuously sounding |
| Noise Level | <55dB @ 1 meter |
Real Panel
| 1. Output receptacles2. Operation mode selector 3. AC input 4. Input breaker 5. External battery connectors |
