Lian Li Universal 4-Slot Vertical GPU Kit White with PCIe 5.0 Riser Cable | G89.VG4-5-V4W.00

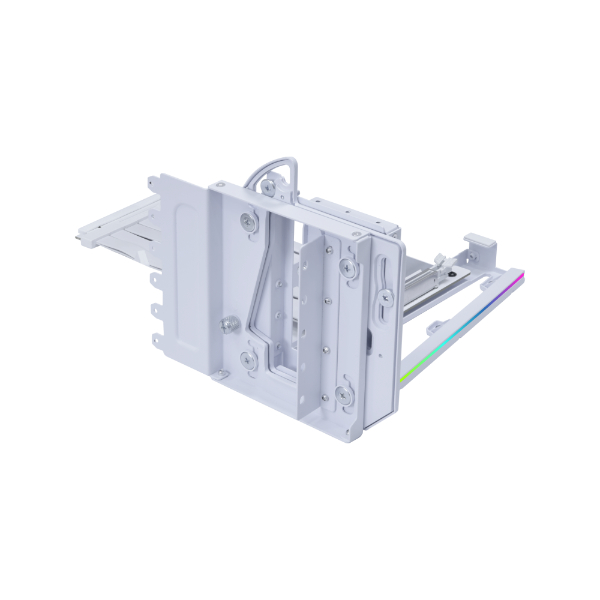

The Lian Li VG4v4 4-Slot Vertical GPU Kit is designed to vertically display large graphics cards while providing flexible positioning, strong anti-sag support, and high-speed PCIe connectivity. It supports GPUs up to four slots thick and offers three adjustable mounting heights plus forward, neutral, and backward display angles to help balance component visibility, airflow, and cooler clearance.
This White variant includes a 200mm PCIe 5.0 x16 riser cable, integrated 5V ARGB lighting, and a reinforced GPU support arm rated for up to 10kg. The adjustable design can be used across compatible Lian Li and third-party ATX cases that provide the required mounting space, making it a flexible upgrade for showcase-oriented gaming and enthusiast PC builds.
• 4-Slot GPU Support: Designed for graphics cards up to four expansion slots thick
• Three Height Levels: Allows the GPU position to be adjusted in 10.16mm increments
• Forward, Neutral & Backward Angles: Three display positions provide flexible GPU presentation
• Tool-Free Angle Adjustment: GPU display angle can be changed through dedicated mounting positions
• 10kg Anti-Sag Support: Reinforced support arm helps stabilize large and heavy graphics cards
• PCIe 5.0 Riser Cable Included: Provides modern high-speed GPU connectivity
• 200mm Riser Cable: Offers sufficient routing length for vertical GPU installations
• PCIe x16 Interface: Designed for standard desktop graphics cards
• Backward Compatibility: PCIe 5.0 riser supports earlier PCIe generations
• 5V ARGB Lighting: Integrated lighting supports compatible motherboard RGB synchronization
• Adjustable Anti-Sag Arm: Support height can be aligned with the selected GPU position
• ATX / Micro-ATX Support Arm: Standard anti-sag configuration supports ATX and Micro-ATX systems
• E-ATX Support: Includes a dedicated extension-arm configuration for compatible E-ATX layouts
• Expanded Rear Opening: Provides additional clearance for thicker HDMI and display cables
• Steel Construction: Durable bracket structure designed for large GPU installations
• Universal Case Compatibility: Can be used with compatible non-Lian Li cases that meet the mounting requirements
• White Finish: Designed to match white-themed PC builds
| Specification | Details |
|---|---|
| Brand | Lian Li |
| Series | VG4v4 |
| Model | VG4-5-V4W |
| Product Code / SKU | G89.VG4-5-V4W.00 |
| Product Type | Vertical GPU Mounting Kit |
| Color | White |
| GPU Support | Up to 4-Slot Graphics Cards |
| Expansion Slots | 4 |
| GPU Display Positions | Forward / Neutral / Backward |
| Height Adjustment | 3 Levels |
| Height Adjustment Increment | 10.16 mm |
| Maximum Height Increase | 20.32 mm from Level 1 |
| Anti-Sag Support | Yes |
| Anti-Sag Support Capacity | Up to 10 kg |
| Lighting | Integrated 5V ARGB |
| RGB Synchronization | Compatible Motherboard ARGB Software |
| Bracket Material | Steel |
| PCIe Riser Cable | PCIe 5.0 |
| Riser Cable Interface | PCIe x16 |
| Riser Cable Length | 200 mm |
| PCIe Backward Compatibility | PCIe 2.0 / 3.0 / 4.0 |
| Bracket Dimensions (L × W × H) | 168.63 × 147.5 × 234.86 mm |
| Motherboard Support | ATX / Micro-ATX / E-ATX Configurations |
| Case Compatibility | Compatible ATX Cases Meeting Required Expansion-Slot and Clearance Requirements |
| GPU Forward Offset After Installation | 31 mm |
