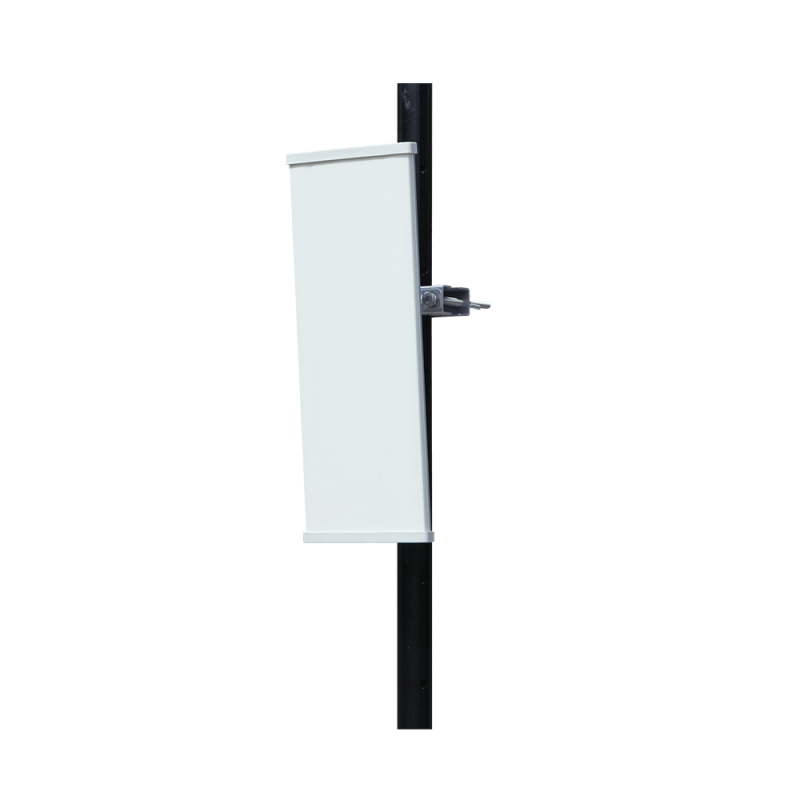

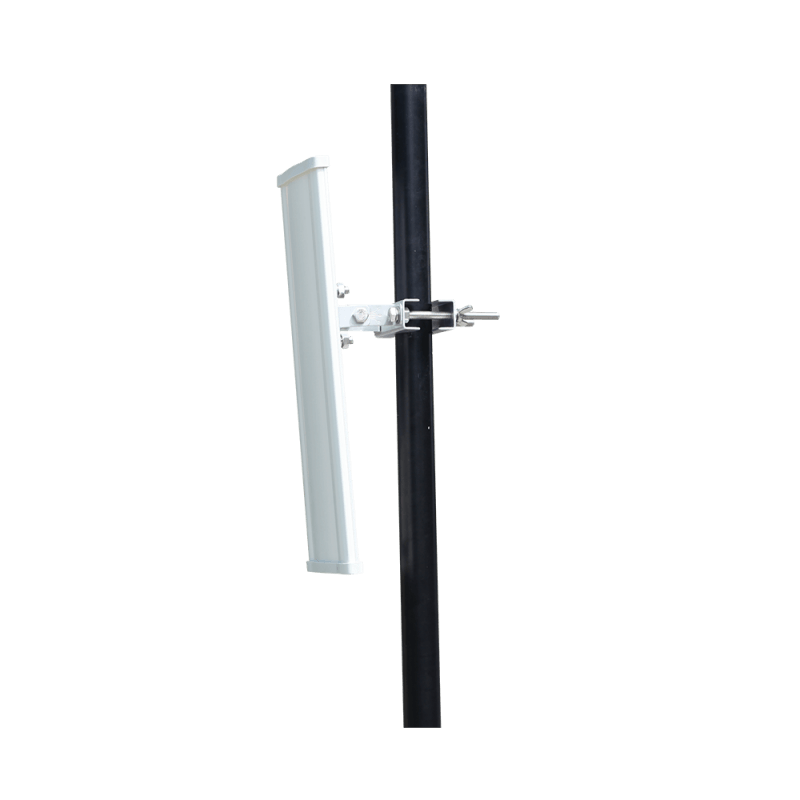

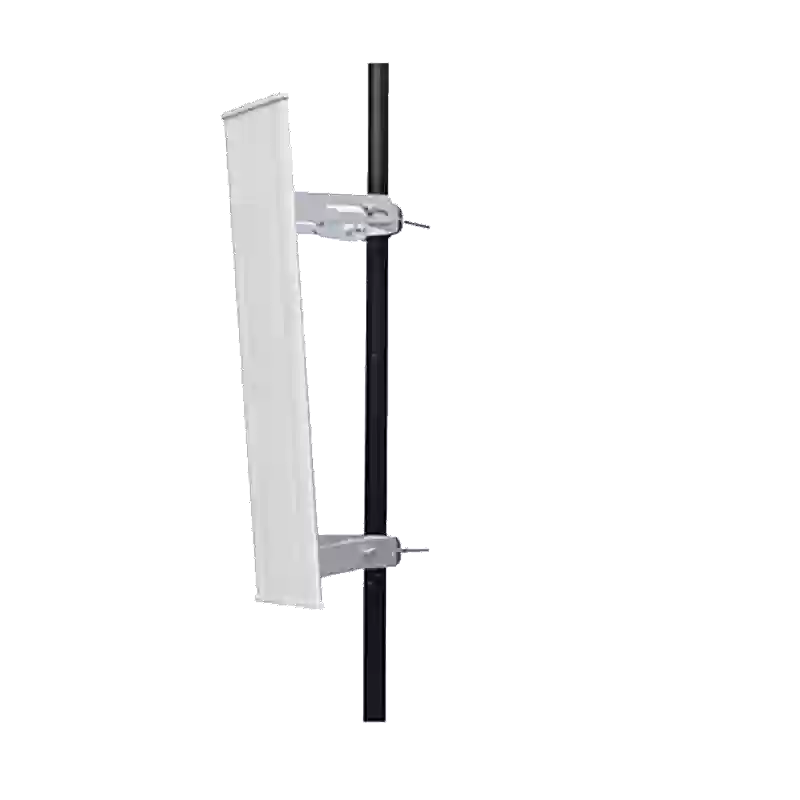

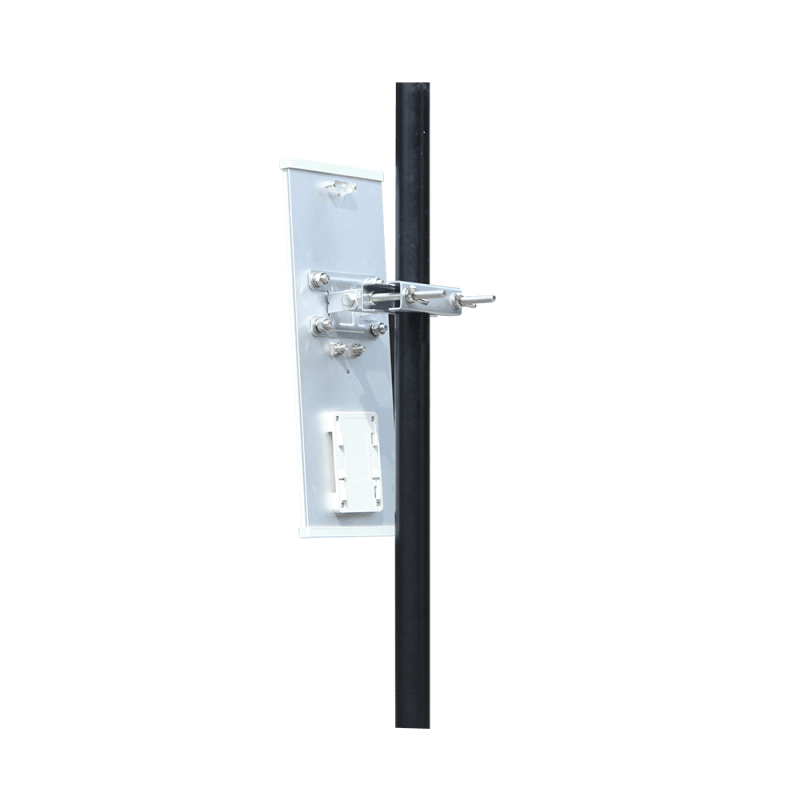

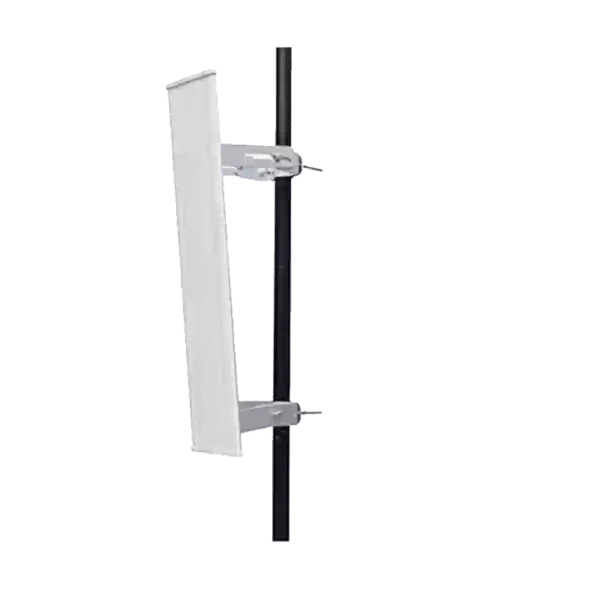

ANTENNA TENDA ANT16-5G-120 5GHZ 16DBI DUAL POLARITY
$78.00
WhatsApp us
Key specifications
- condition: new
- Shipping: Free Shipping
Shopping from Lebanon?
Current online price and availability are shown on this page. Cash on delivery is available where offered at checkout, and delivery options are shown before you place the order.
Need help choosing? Contact Khalife Computers.
| Antenna Type | Sector Antenna |
| Frequency Range | 5100-5850 MHz |
| Gain | 15-16dBi |
| Polarization | Vertical |
| Horizontal Beamwidth (6dB) | 120° |
| Vertical Beamwidth (6dB) | 120° |
| Elevation Beamwidth | 7° |
| Electrical Downtilt | 0° |
| Front-To-Back Ratio | >25dB |
| Isolation | >25dB |
| VSWR | ≤ 2.0 |
| Maximum Power Per Port | 20W |
| Impedance | 50Ω |
| Antenna Dimensions( LxWxD) | 385 x 150 x 20mm |
| Mounting | Pole (D30-70mm) |
| Mechanical tilt capability | 0~7° |
| Connector Type | 2*RP-SMA |
| Operational Temperature | -40°C to 70°C |
| Operational Humidity | 10%~90% non-condensing |
| condition | new |
|---|---|
| Shipping | Free Shipping |
