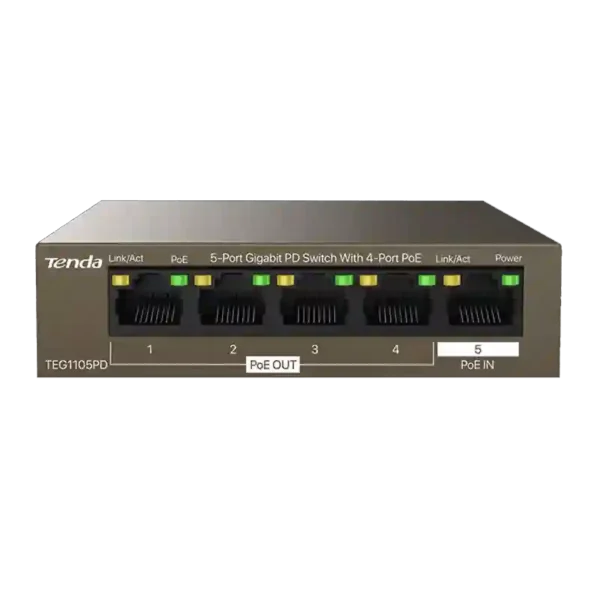

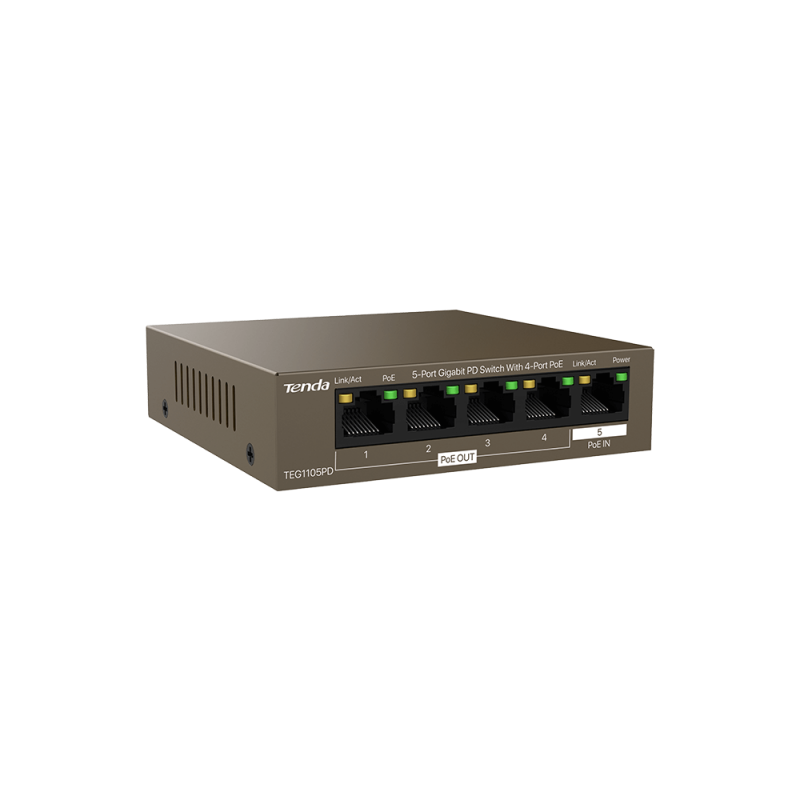

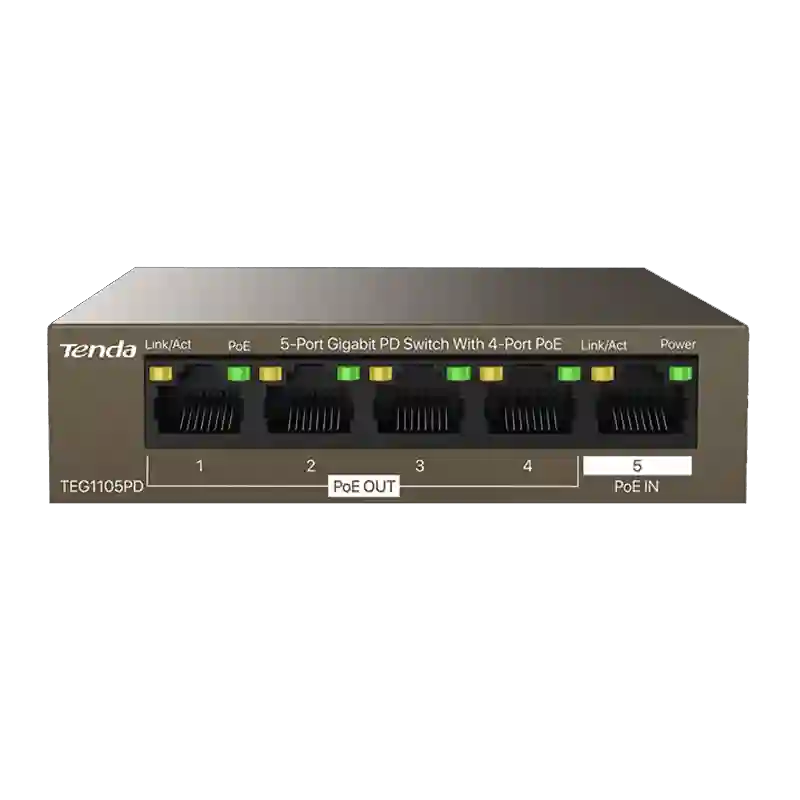

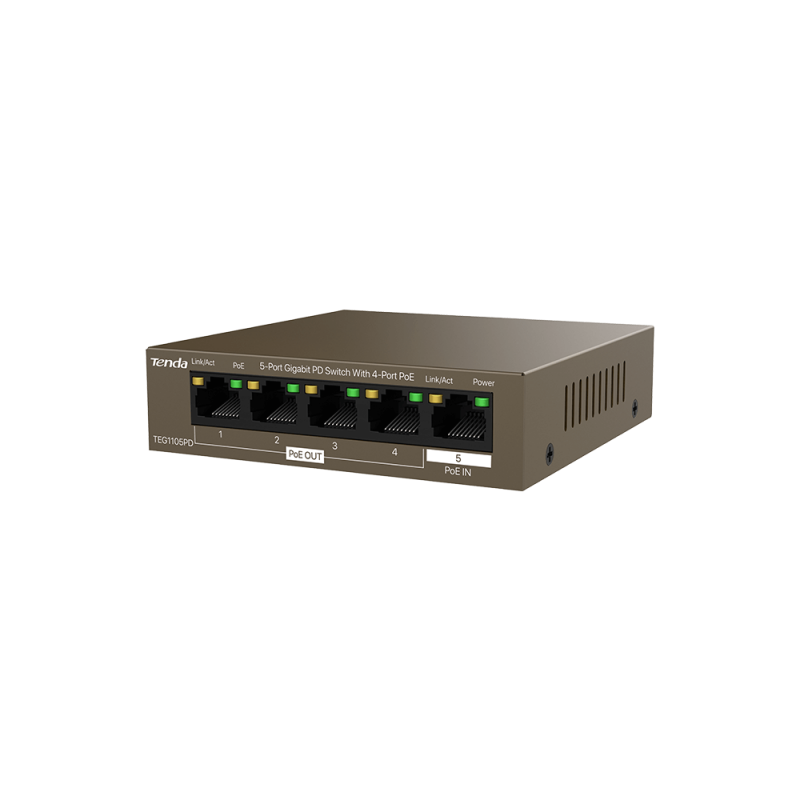

TENDA SWITCH POE PD 5 PORTS GIGABIT (4 POE OUT, 1 POE IN) TEG1105PD UNMANAGED DESKTOP
$22.00
WhatsApp us
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| LED Indicator | 1* Power LED indicator |
| 4* PoE LED | |
| indicators | |
| 5* Link/Act LED indicators | |
| Interfaces | 4*10/100/1000 Base-T Ethernet Ports(Data/PoE |
| UT) | |
| 1*10/100/1000 Base-T Ethernet Port(Data/PoE IN) | |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 100.0 mm x 100.0 mm x 26.0 mm |
| Level of protection | Lightning protection for ports: 6kV |
| Lightning protection for power: 6kV | |
| ESD: | |
| Air discharge: ±10kV | |
| Contact discharge: ±8kV | |
| Forwarding mode | Store-and-forward |
| Switch capacity | 10 Gbps |
| Packet forwarding rate | 7.44Mpps |
| Buffer | 1 Mb |
| MAC address table | 2K |
| Jumbo frame | 9K |
| PoE budget | Single port: AF: 15.4W |
| Power consumption | / |
| Input voltage | 50-57V DC, 0.6A |
| Mounting | Desktop mounting: support |
| Wall mounting: non-support | |
| Rack mounting : non-support | |
| Environment | Operating Temperature: 0℃~45℃ |
| Storage Temperature: -40℃~70℃ | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| Certification | FCC、CE、RoHS |
| condition | new |
|---|---|
| Shipping | Free Shipping |
