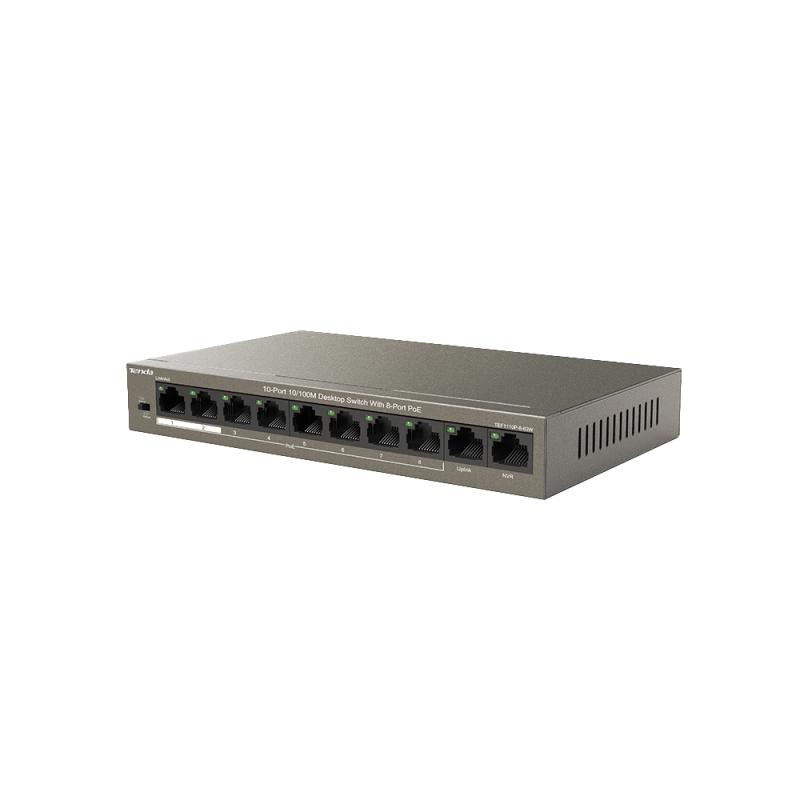

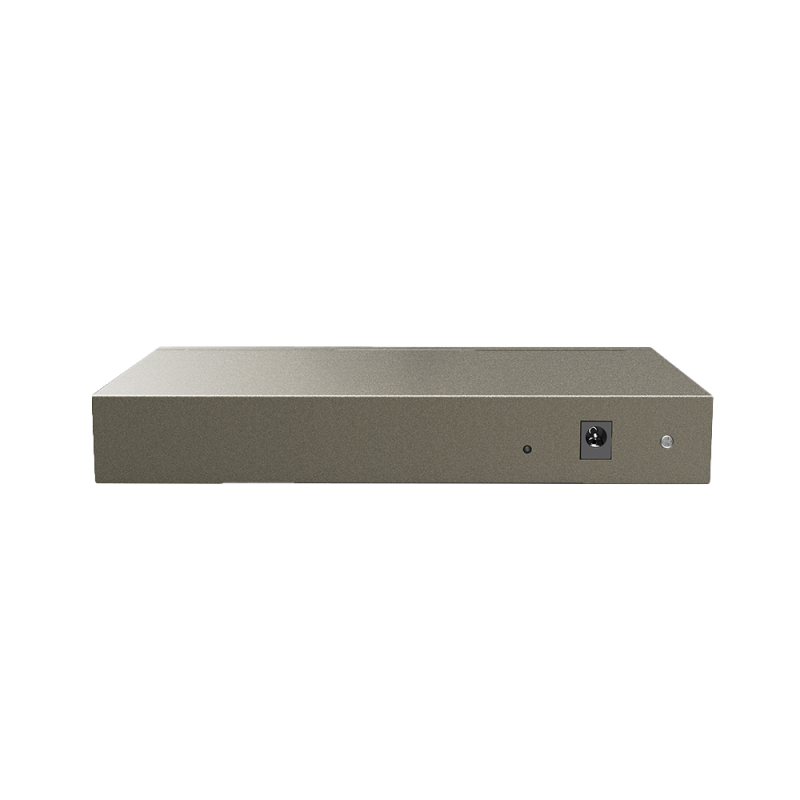

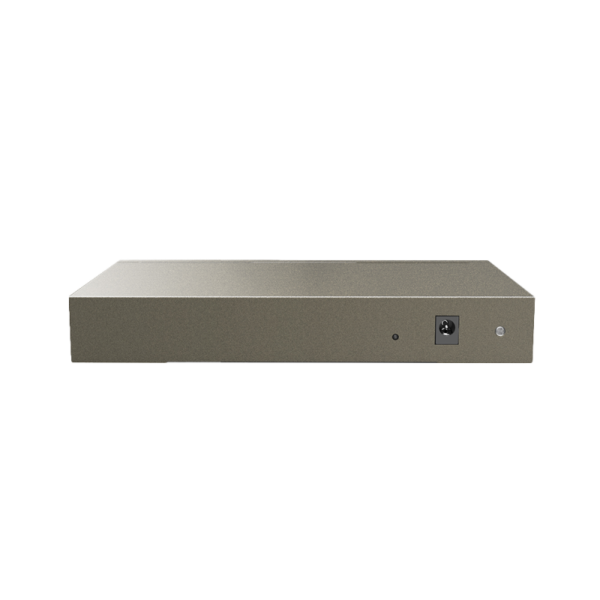

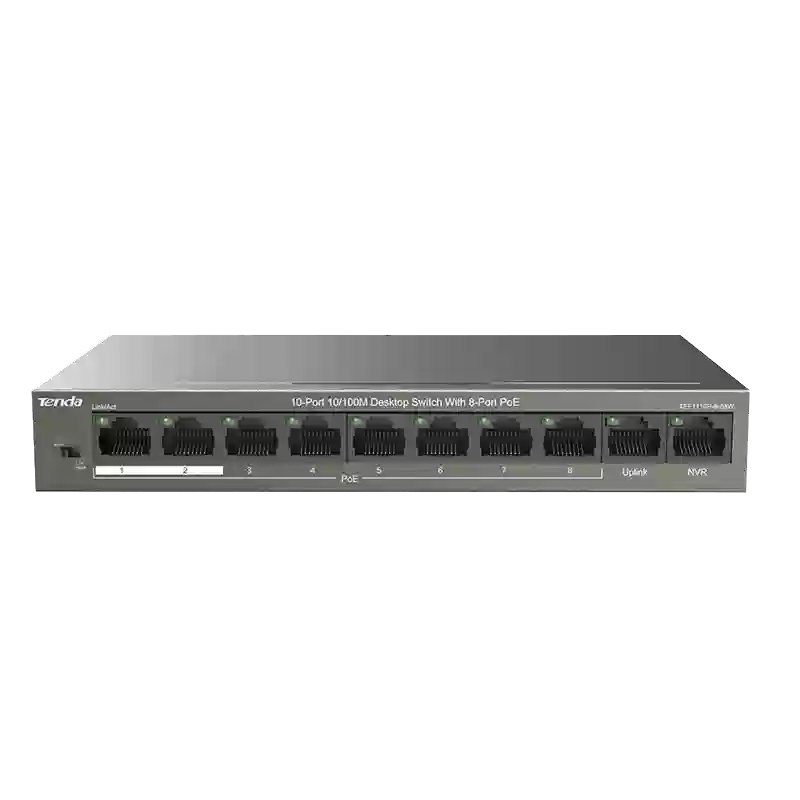

TENDA SWITCH POE 10 PORTS 10100 (8 POE, 2 UPLINK) TEF1110P-8-63W UNMANAGED DESKTOP, WALL
$37.00
WhatsApp us
| Network standards | IEEE 802.3/3u/3x, IEEE 802.3af/at |
| LED Indicator | 10* Link/Ack LED indicators |
| 1 * Power LED indicator | |
| Interfaces | 8 * 10/100 Base-TX Ethernet ports (Data/Power) |
| 2 * 10/100 Base-TX Ethernet ports (Data) | |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 177.5mmx104.0mmx26.0mm |
| Level of protection | Lightning protection for ports: 6KV |
| Lightning protection for power: 4KV | |
| ESD: | |
| Air discharge: ±10kV | |
| Contact discharge: ±8kV | |
| Forwarding mode | Store-and-forward |
| Switch capacity | 1.6 Gbps |
| Packet forwarding rate | 1.48Mpps |
| Buffer | 448K |
| MAC address table | 1K |
| PoE budget | Single port: AF: 15.4W, AT: 30W |
| Whole device: 58W | |
| Power consumption | / |
| Input voltage | 100－240V AC 50/60Hz |
| 51V /1.25A DC（Power Adapter ） | |
| Mounting | Desktop mounting: support |
| Wall mounting: support | |
| Rack mounting:non-support | |
| Environment | Operating Temperature: 0℃~45℃ |
| Storage Temperature: -40℃~70℃ | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| Certification | FCC、CE、RoHS |
| Funtions | Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation. |
| Extend Mode:VLAN isolation is enabled. Port 1-8 will be isolated respectively (10/100Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps) |
| condition | new |
|---|---|
| Shipping | Free Shipping |
